Item No.
AU008
Item Name.

Original Autel MaxiDAS DS808 Tablet Diagnostic Tool Full Set Support Injector Coding & Key Coding Free Update Online

Item Price:
USD
USD$750.00
Weight
3kg
Quantity:
100 PCS in stock now!
-
+
Note: Please Select the Frequency and Chip Type
  • Products Description
  • Reviews




Autel MAXIDAS DS808 DiagnosticTool

Contact Me With Whatsapp


All System Diagnosis + Hot Service Functions + Key Programmer Immobilizer

Supported Languages: English, German, Spanish, Portuguese, Dutch, French, Italian, Korean ,Polish,Swedish, Japanese, Russian

Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

■ Introduction

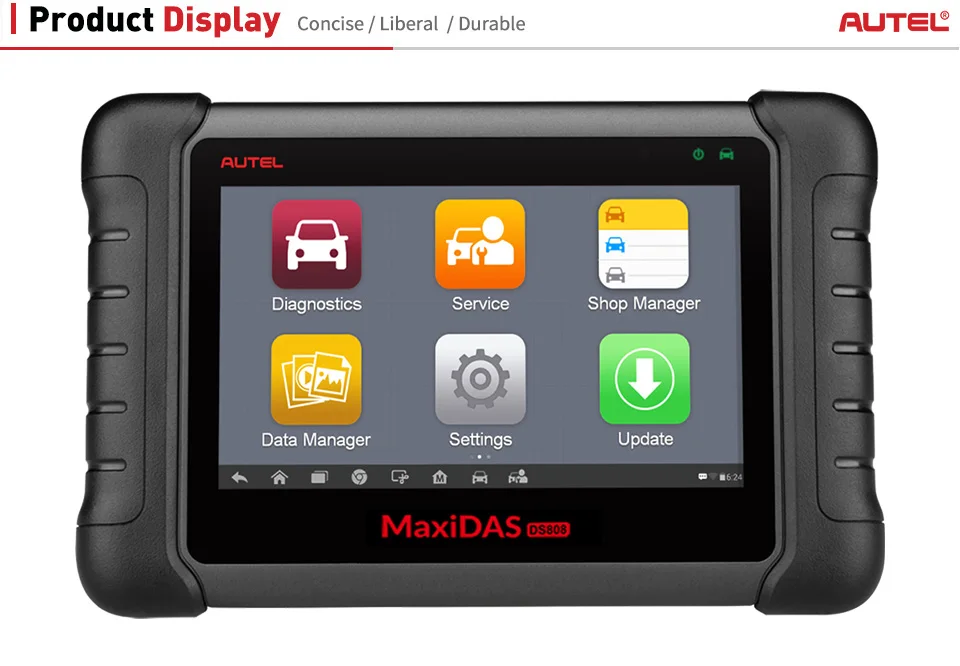

Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.

■ Bullet Points

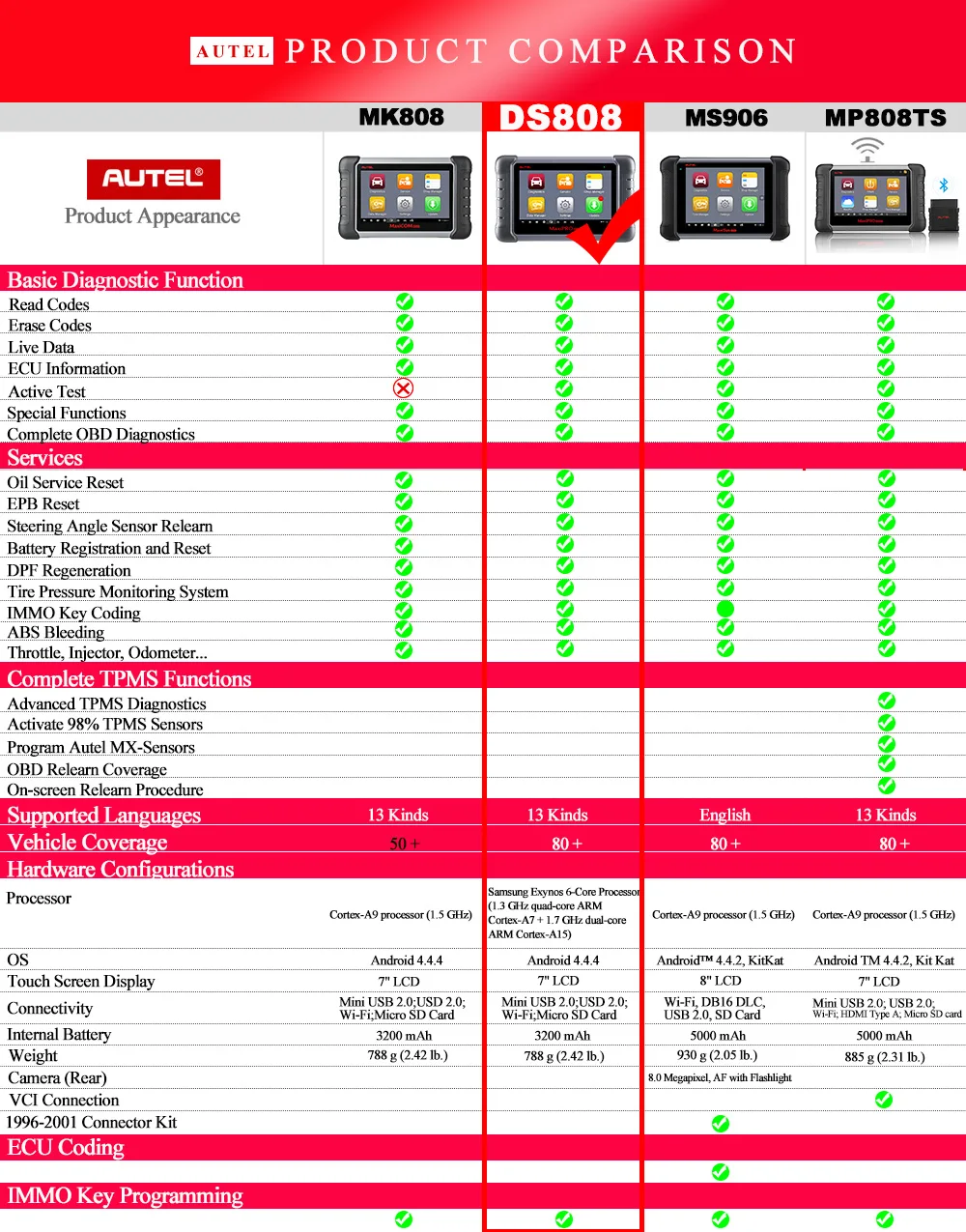

1. ADVANCED DIAGNOSIS and ANALYSIS: DS808 is the upgraded version of DS708, which performs as powerful as MS906, contains complete capabilities for codes, live data, active test, ECU information, adaptation, matching.

2. POWERFUL FUNCTIONS: DS808 includes the most commonly performed service functions, such as: Oil Reset Service, TPMS Programming Service, EPB Service, DPF Regeneration Service, SAS Calibration Service, ABS/SRS Service etc.

3. SPECIALIZED FUNCTIONS: The Autel DS808 includes the Smart AutoVIN, Cloud-based MaxiFix and Shop Manager functions. These new functions make the Autel DS808 better than the old DS708 model, while selling at an even better price than the older model

4. BROAD VEHICLE COVEARGE: DS808 covers for more than 80 US, Asian and European vehicles from the year 1996 to 2017, which includes the exceptional OE Level system coverage for all electronic systems.

5. AUTOMATIC SOFTWARE UPDATING: The Auto Update allows the tool to automatically update the OS, the MaxiDAS system, and the Vehicle. We provide one year update online, and full guarantee.

■ Total 18 Service Functions to Get More Done


The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances:

1. Oil Service Reset - Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

2. TPMS Service  -    Quickly looks up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;

3. EPB Service - Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;

4. ABS/SRS Services - Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;

5. SAS Service - Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;

6. DPF Regeneration Service - Clears particulate matter from the DPF filter to stabilize the filter performance.

And many more...

■ Diagnoses of Complete systems


The DS808 performs complete capabilities for all systems, not only includes 4systems diagnoses but all the other systems including Body, Chassis, Powertrain, Communication and more. You can get all the functions to fix your repair work more quickly with DS808.

1. Read hard codes on various systems.
You are able to know the meaning of the trouble codes and figure out what's wrong with your systems.
Erase different DTCs easily after the problem has been carried out. Do remind that the check engine light will be turned off when you cleared the codes.

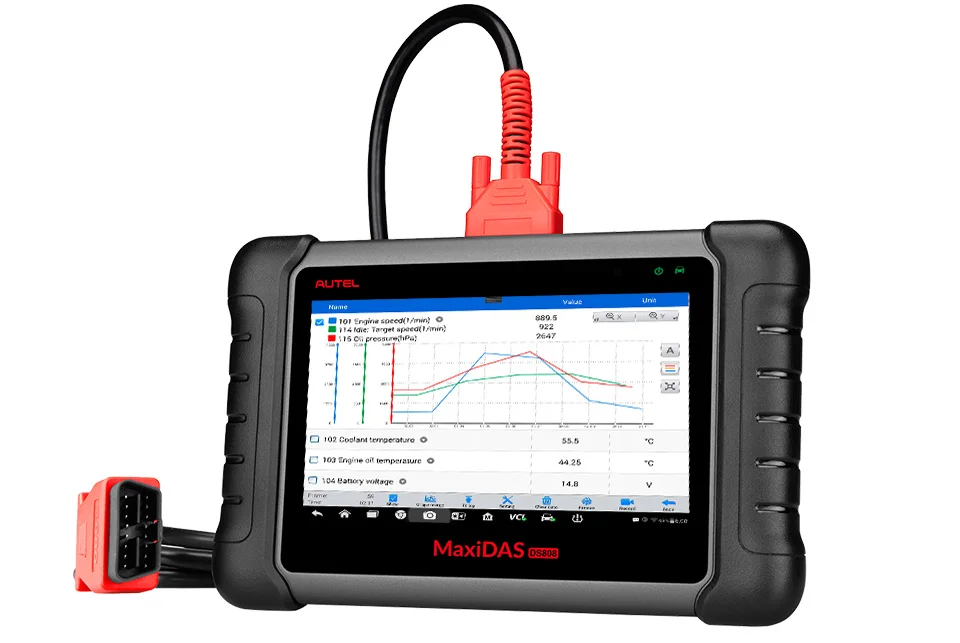

2. Retrieve live data to make sure all the systems run normally.
The parameter item can be displayed in different forms, such as text, waveform graph, digital and more.

3. Active test is to test output elements.
You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.

■ Different Choicce for Diagnoses


DS808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.

When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection.

■ Functions


    1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle make
    2. Exceptional OE-Level system coverage for all electronic systems
    3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
    4. Smart AutoVIN technology for identifying vehicles easily
    5. Automatic system and software updates with real-time push message notifications via Wi-Fi
    6. Instant remote control tech support anytime, anywhere
    7. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
    8. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
    9. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    10. Convenient data management system for managing internal program applications and reviewing data

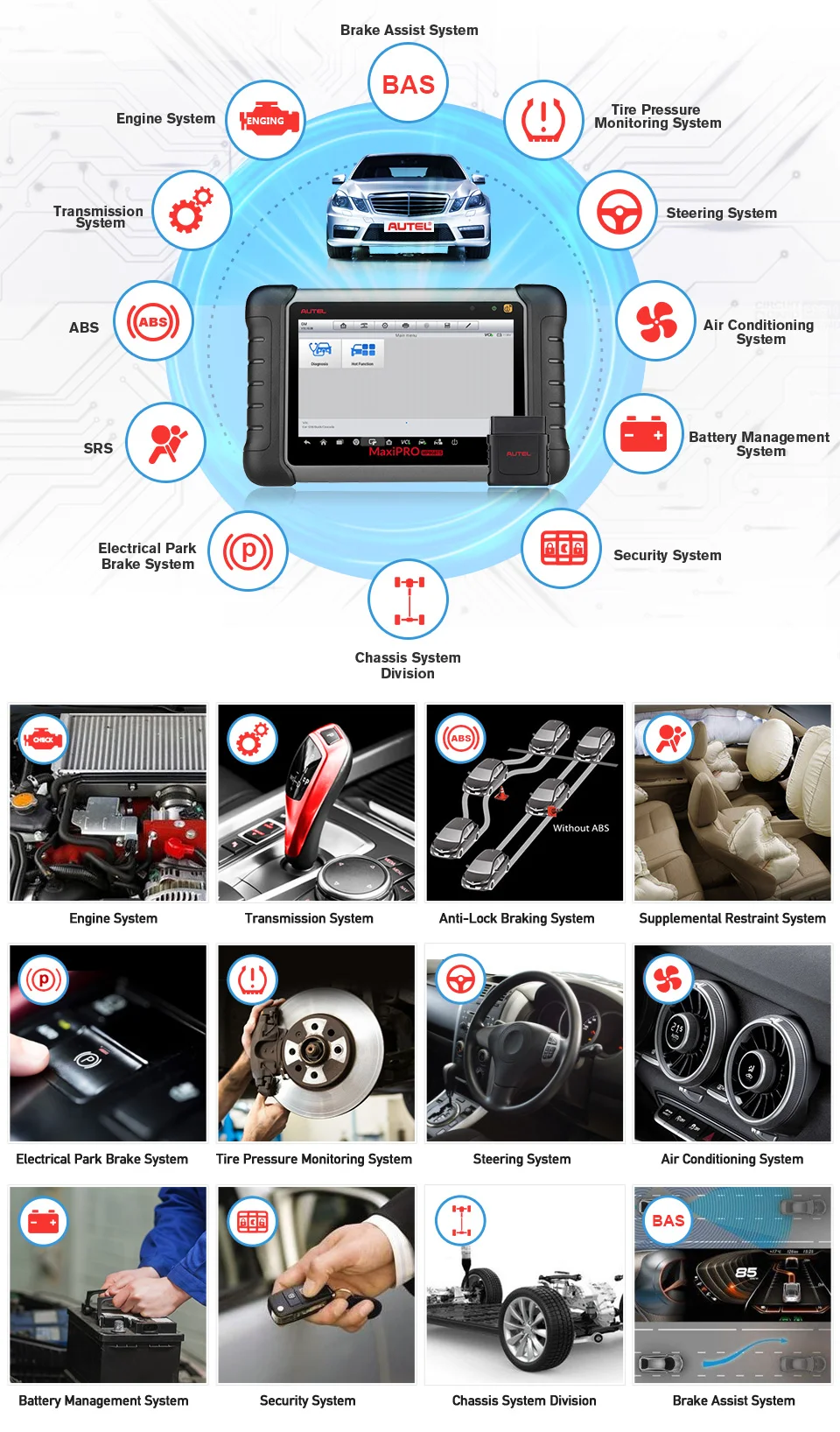

■ More than Comprehensive All System Diagnosis

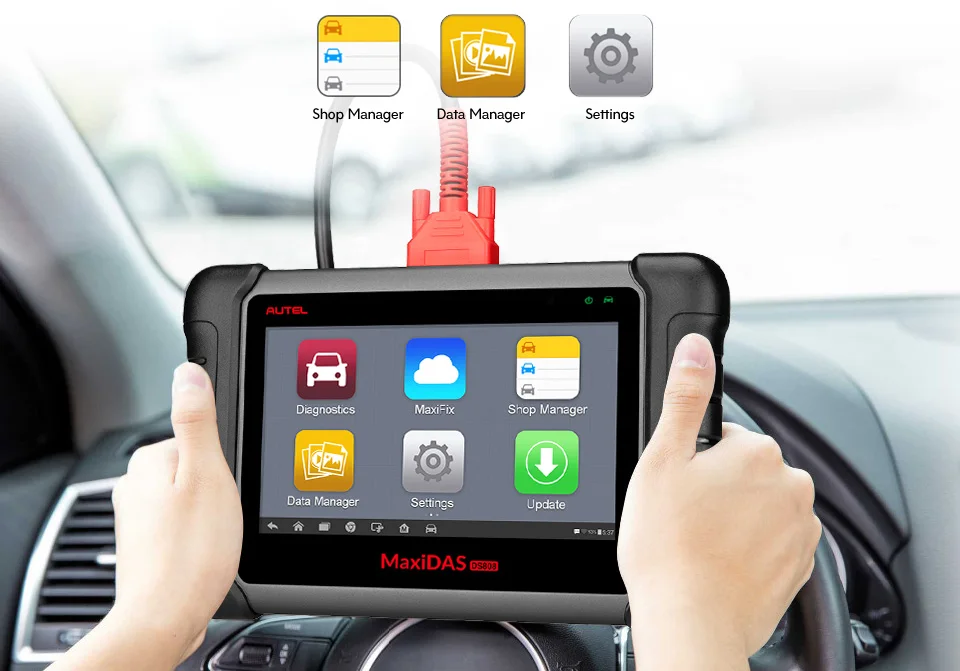

■ Intelligent Applications to Facilitate Your Work

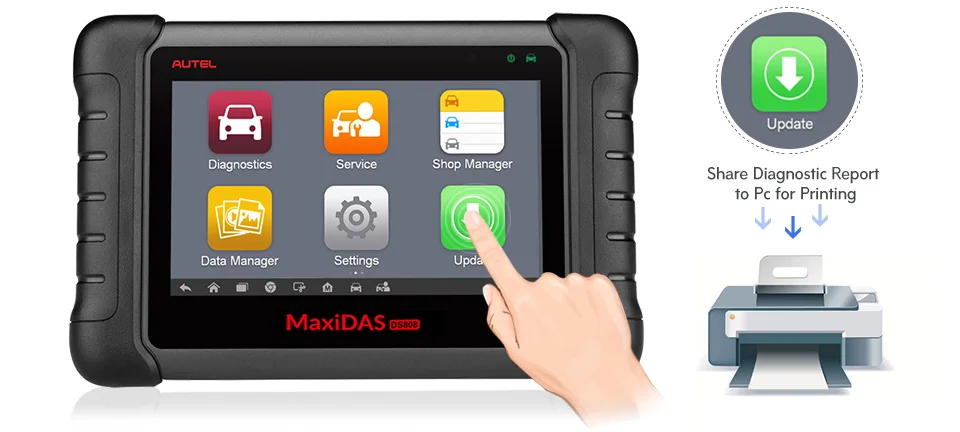

■ Automatic Software Updating - 1 Year Free online Update

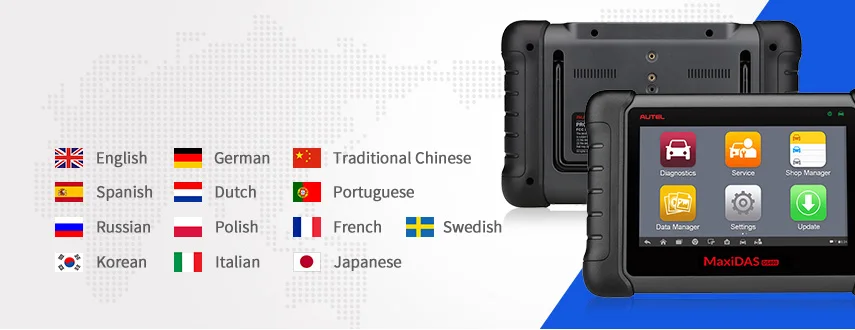

■ Supported Languages - 13 Kinds of Languages


English, German, Spanish, Portuguese, Dutch, French, Italian, Korean ,Polish,Swedish, Japanese, Russian

​Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

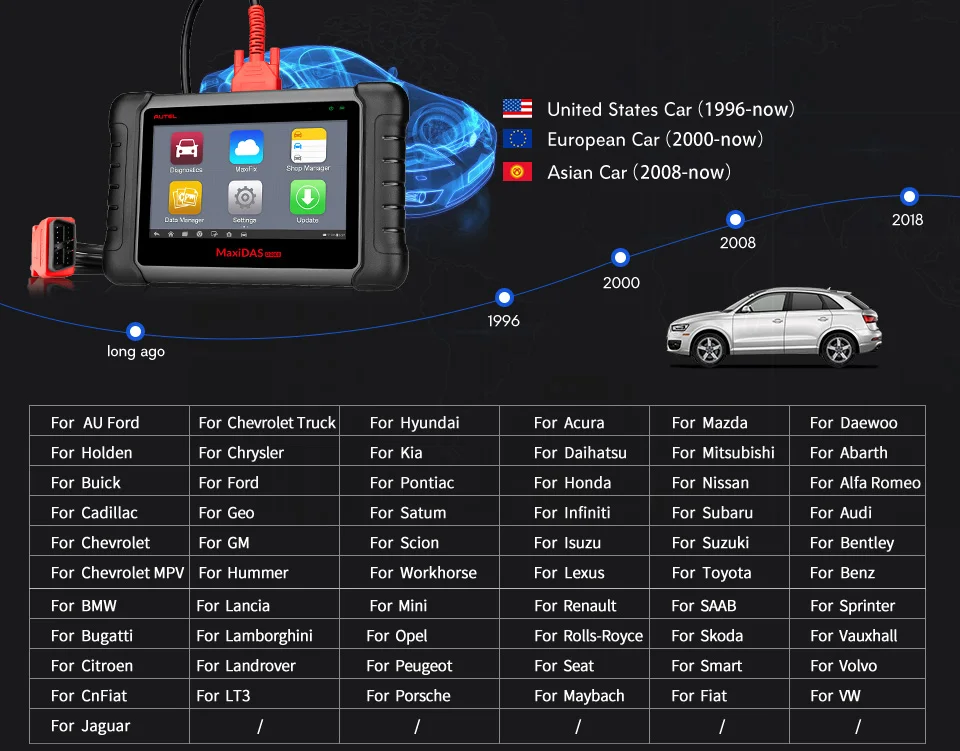

■ Suitable Vehicles



■ Specifications


Recommended Use     Indoor
Operating System   Android 4.4.4
Processor                   Cortex-A9 processor (1.5 GHz)
Memory                   32GB
Display                   7-inch LCD capacitive touchscreen with 1024x600 resolution

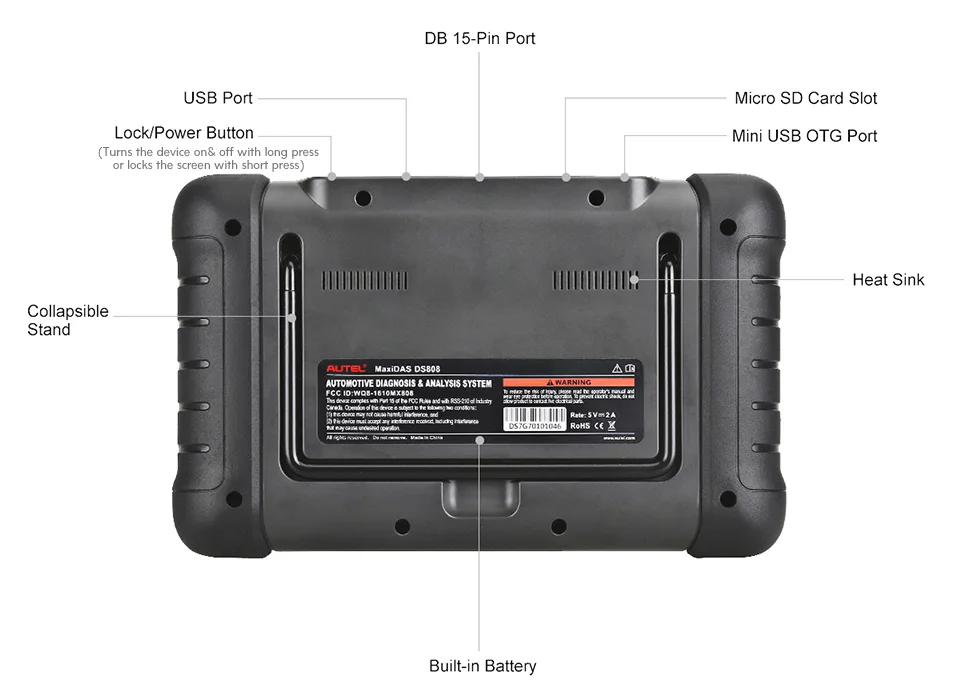

Connectivity           Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB)
Sensors                   Ambient light sensor for brightness auto changing
Audio Input/Output   Input: N/A Output: buzzer
Power and Battery   3.7 V/3200 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life   Around 4.5 hours of continuous use
Battery Charging Input     5 V/1.5 A
Power Consumption   500 mA (LCD on with default brightness, Wi-Fi on) at 3.7 V
Operating Temp.   -10 to 60°C(14 to 140°F)
Storage Temp.           -20 to 70°C (-4 to 158°F)
Operating Humidity   5% - 95% non-condensing

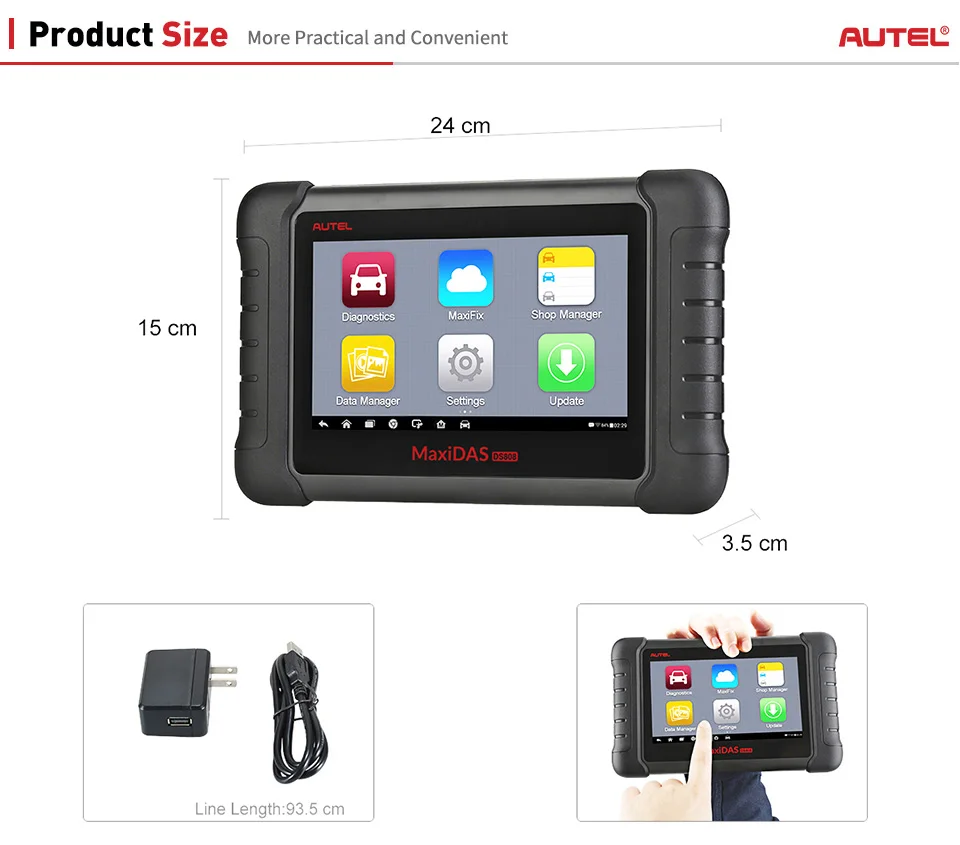

Dimensions (W x H x D)  237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight            788 g (2.42 lb.)


Supported Automotive Protocols

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

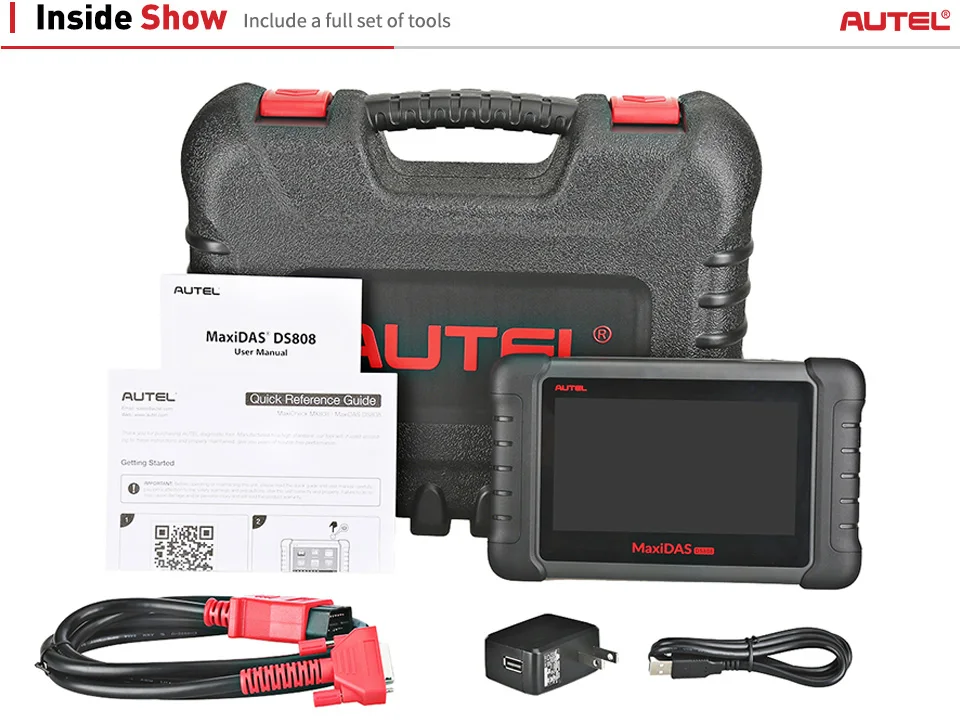

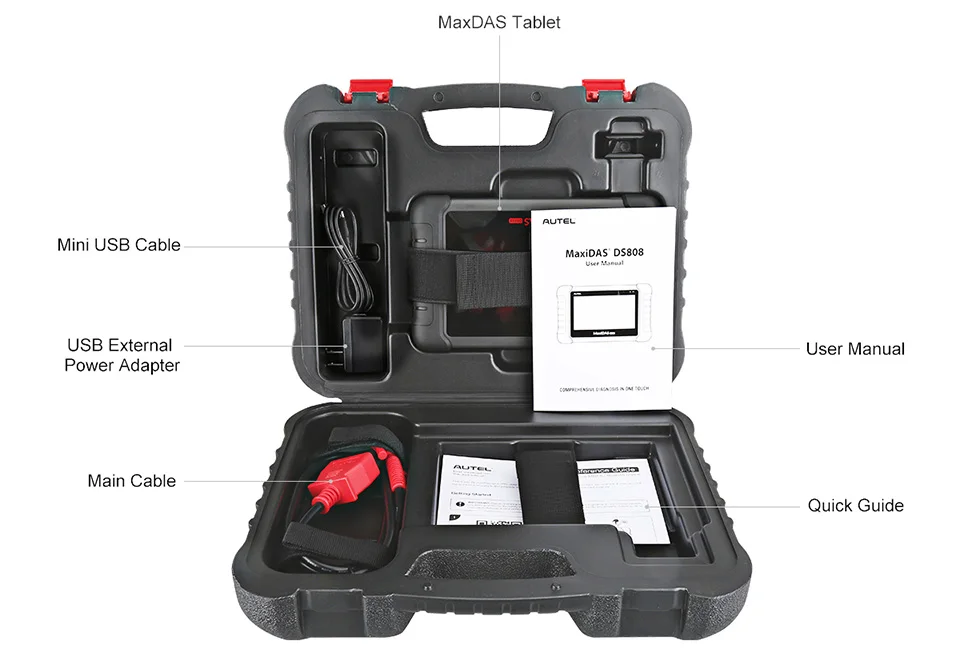

■ Pcking List


1 * USB External Power Adapter

1 * User Manual

1 * Quick reference guide

1 * Main Unit

1 * Main cable

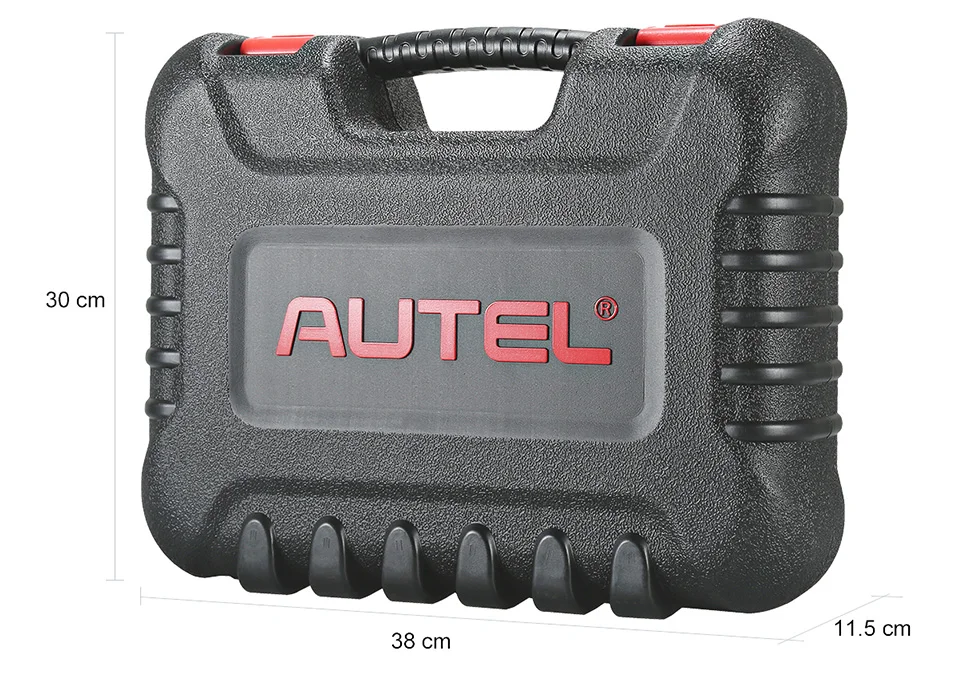

1 * Carry case

1 * Mini USB Cable
